Multilayer Pcb
multilayer pcb
multilayer pcb

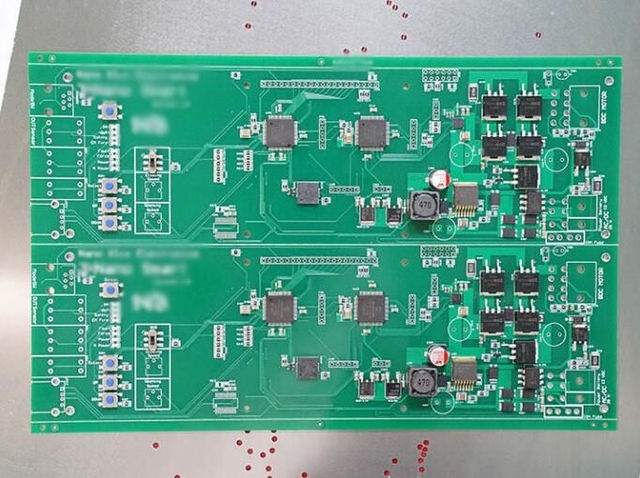

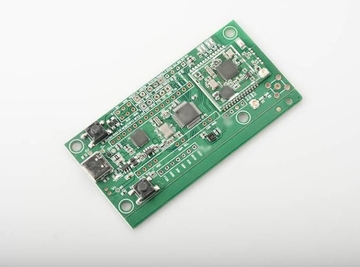

Multilayer pcb circuit panel gold immersion osp surface finish

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.104668

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   0.21
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 0.21
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • PCB item

    Manufacture capacity

    Layer counts

    1-20L

    Base material

    FR3,high-TG FR4,CEM3,aluminum,high frequency(Rogers,Taconic,Aron,PTFE,F4B)

    Material Thickness(mm)

    0.4,0.6,0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.2

    Max board size(mm)

    1200x400mm

    Board outline tolerance

    +-0.15mm

    Board thickness

    0.4mm-3.2mm

    Thickness tolerance

    +-8%

    Minimum line/space

    0.1mm

    Min annular ring

    0.1mm

    SMD Pitch

    0.3mm

    Hole

    Min hole size(mechanical)

    0.2mmm

    Min hole size(laser hole)

    0.1mm

    Hole size tol(+/-)

    PTH:+-0.075mm;NPTH:+-0.05mm

    Hole size tol

    +-0.075mm

    Plating

    HASL/LF HAL

    2.5um

    Immersion gold

    Nickel 3-7um Au:1-5u”

    Surface finish

    HAL,ENIG,Plated gold,immersion gold,OSP

    Copper

    Copper weight

    0.5-6oz

    Color

    Solder mask

    Green,blue,black,white,yellow,red,matt green,matt black,matt blue

    Silk screen

    White,black,blue,yellow

    Acceptable file format

    Gerber file,powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000

    Certificate

    ROSH,ISO9001,UL

  • Specification

    • Material: FR4 CEM1 CEM3 alumininum

    Copper Thickness: 0.5-6oz

    Max board size: 1200 x 400mm

    Surface finish: OPS HAL Leadfree HASL Immersion gold

    Certificate: ISO9001 Rohs UL IATF16949
