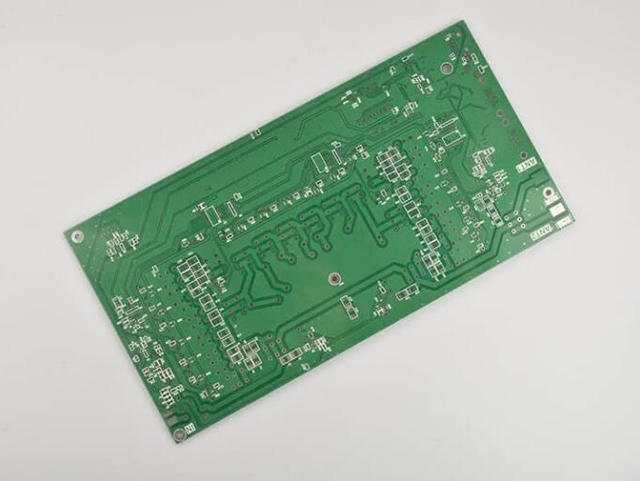

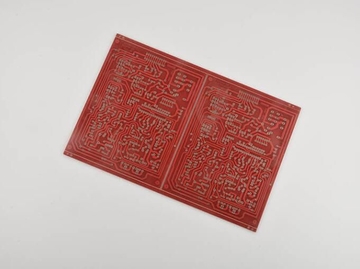

1oz 1.6mm pcb circuit board with lead free hasl
1oz 1.6mm pcb circuit board with lead free hasl

1oz 1.6mm pcb circuit board with lead free hasl

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.104879

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   0.1
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 0.1
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • PCB item

    Manufacture capacity

    Layer counts

    1-20L

    Base material

    FR3,high-TG FR4,CEM3,aluminum,high frequency(Rogers,Taconic,Aron,PTFE,F4B)

    Material Thickness(mm)

    0.4,0.6,0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.2

    Max board size(mm)

    1200x400mm

    Board outline tolerance

    +-0.15mm

    Board thickness

    0.4mm-3.2mm

    Thickness tolerance

    +-8%

    Minimum line/space

    0.1mm

    Min annular ring

    0.1mm

    SMD Pitch

    0.3mm

    Hole

    Min hole size(mechanical)

    0.2mmm

    Min hole size(laser hole)

    0.1mm

    Hole size tol(+/-)

    PTH:+-0.075mm;NPTH:+-0.05mm

    Hole size tol

    +-0.075mm

    Plating

    HASL/LF HAL

    2.5um

    Immersion gold

    Nickel 3-7um Au:1-5u”

    Surface finish

    HAL,ENIG,Plated gold,immersion gold,OSP

    Copper

    Copper weight

    0.5-6oz

    Color

    Solder mask

    Green,blue,black,white,yellow,red,matt green,matt black,matt blue

    Silk screen

    White,black,blue,yellow

    Acceptable file format

    Gerber file,powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000

    Certificate

    ROSH,ISO9001,UL

    Lead time for production orders:

    Sample lead time

    Mass production lead time

    Single sided pcb

    1-3days

    4-7days

    Double sided pcb

    2-5 days

    7-10days

    Multilayer pcb

    7-8days

    10-15days

    Pcb and assembly

    8-15

    15-20days

  • Specification
    • Layer: 4 layers
    Material: FR-4
    Board thickness: 1.0mm
    Offer: OEM/ODM services
    Range of copper thickness: 0.5-2oz

    Advantages of our company:

    1. We can offer one-stop service for PCB assembly

    2. Professional teams:
    Our company has professional electronic, IT, appearance and structure engineering teams and three main kinds of manufacture centers: injection molding, SMT, assembly center
    Can offer one-stop service to design and manufacture PCBA, electronic products and electric appliances

    3. Integrated solutions provider:
    With many years of experience and manufacturing facilities, we are able to tailor our services and products to meet the needs of our international clients
    We are dedicated to providing greater and more personalized services, items are currently being utilized across the household appliance, telecommunication, wireless electronics, intelligent products, electromechanical device, smart home, medical, electronic, sanitary industries

    4. Response within 24 hours
    Several customer service representatives are ready to reply to your inquiries within 24 hours and offer efficient after-sales and technical support
